Fuel cell mixer
- Quick connects on input and output. 6 gas line stems included for 1/8" gas line
- Four high precision mass flow controllers calibrated with real gas at two temperatures
- Dynamic range 1:100
- Accuracy ±0.3%FS ±0.5%MV
- Flow ranges 0.5mln/min to 50 mln/min for H2, N2 and C3H8 and 1-100 mln/min for Air
- Mass flow controllers operated with software. Communication through USB to Windows based computer
- Software to operate gas mixer
- Communications cable included
- Computer not included. Requires 2 free USB ports.
- 2 * Temperature controlled heating cabinets/humidifiers to set water vapor content of the gases
- Temperature range ambient to 99.9°C
- Led display of temperature or setpoint temperature
- Stainless steel container, volume 1 liter, thermally insulated
- Manual valves to bypass humidifiers
- Visual indicator for water level, and valve at top to refill humidifier
- Mixer size roughly 50cm x 50cm x 30cm in a metal enclosure
- Mixer operates internally with 24VDC, external adapter (240VAC -> 24VDC) included

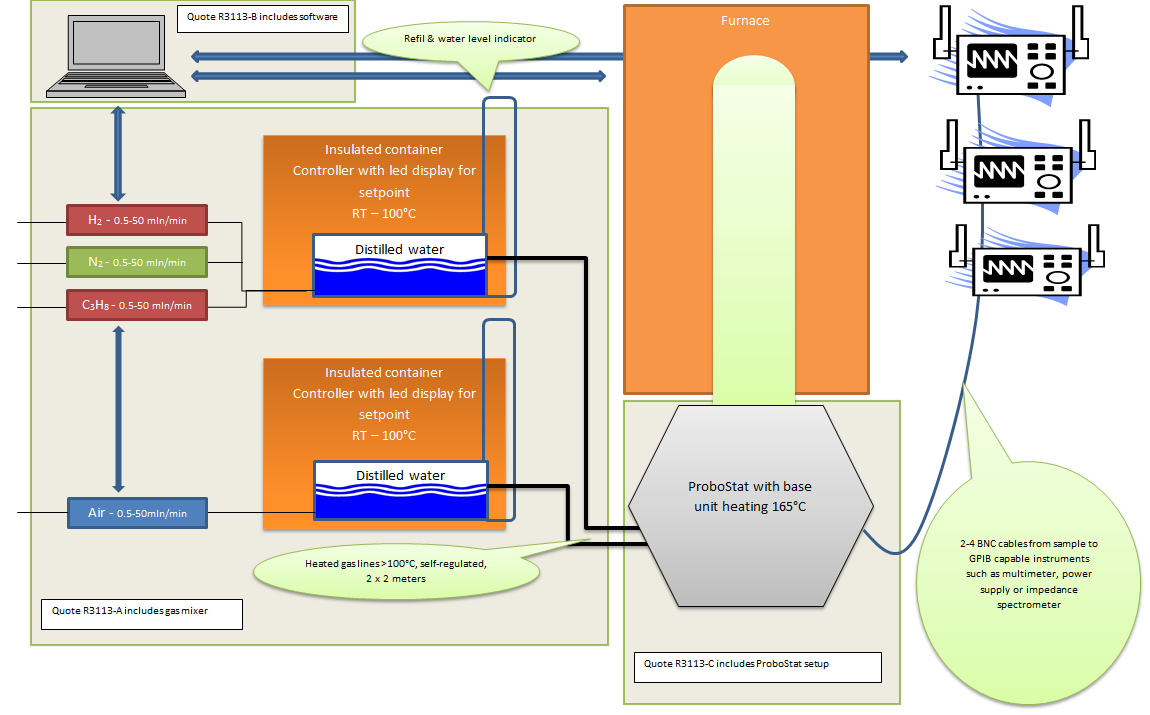

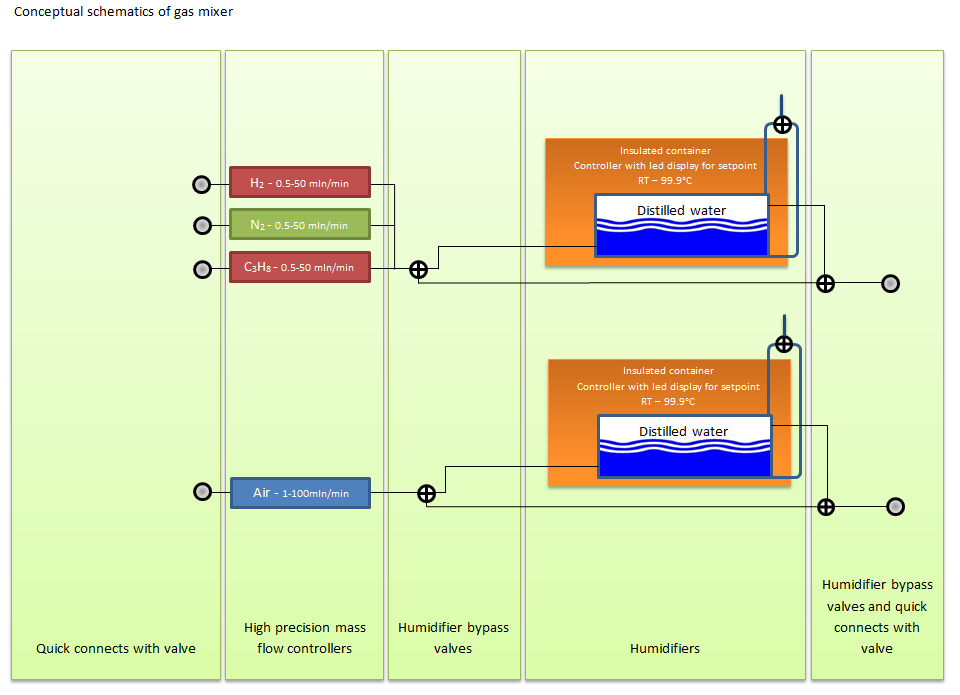

Schematics of the whole measurement setup
