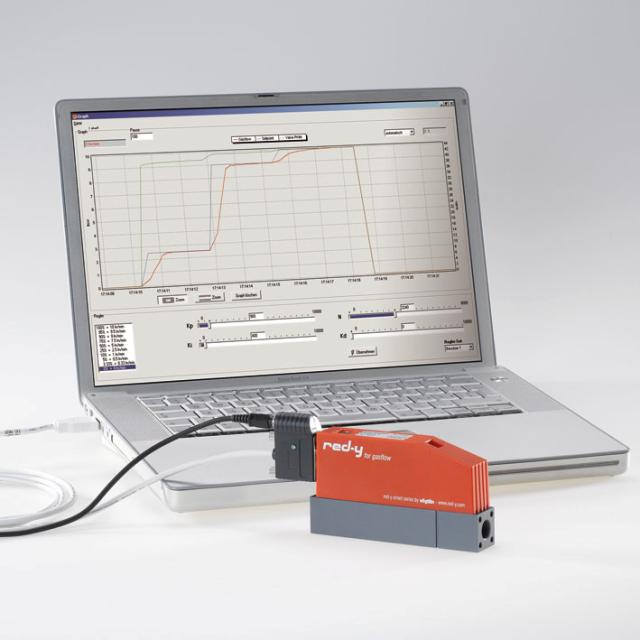

Red-y smart - thermal mass flow controller and meter
- Accuracy: 0,3% of full scale + 0,5% of reading
- Turndown ratio: 1:100
- Response time: 50ms
- Communication with PC and SPS including software
- Profibus-Connection
- Real gas calibration
- Insensitive to pressure and temperature changes
- Minimum pressure loss
- Materials: Aluminium or stainless steel
- Temperature measurement as standard (digital)
- Compact design, simple installation
- Easy to service and maintain
- Multigas - One device for 10 different gases
- LED operating status indication
- Set point delay
- Analog setpoint and value readout (voltage or current)
- With built-in display (option)
- 3-year warranty
|
 |

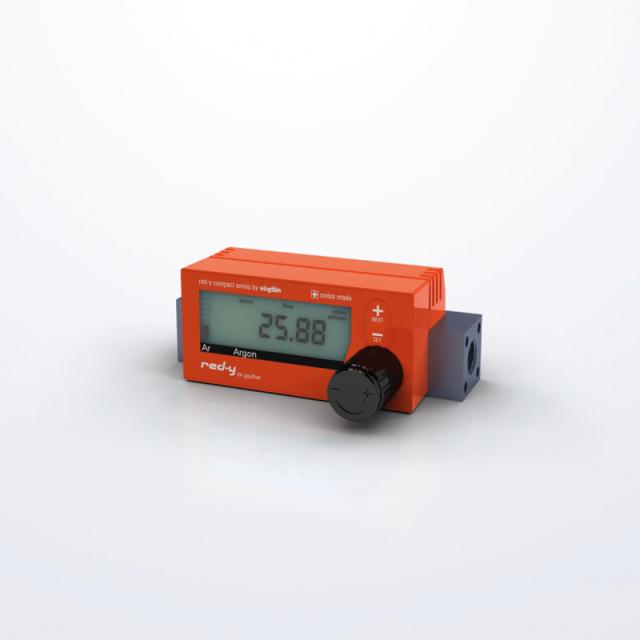

Red-y compact - thermal mass flow controller and meter with digital convenience
Alongside numerous other possible uses, the red-y compact becomes an affordable alternative to the traditional variable area flowmeters.- Thermal mass measurement principle
- Measuring-, regulation- and alarm function
- Insensitive to pressure and temperature changes
- High accuracy and turndown ratio
- Battery power (2 years of autonomous operation) or 24 Vdc
- Totalizer
- Extremely compact unit
- CMOS sensor technology
- No moving parts
- Resistant to pressure bumps
- On-the-spot direct reading, including bar graph
- Real gas calibration
- High precision needle valve
- 3-year warranty (except battery)
|
 |

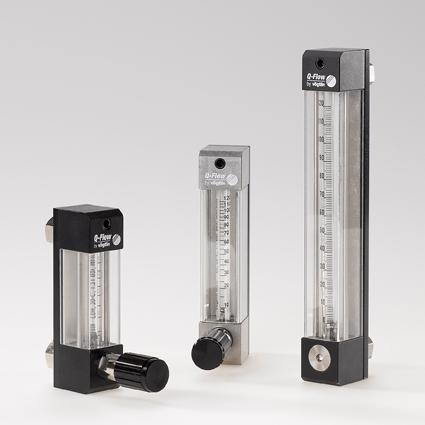

Q-flow - Variable area flowmeters and controller with attractive design and price
Q-Flow is a modern flowmeter for gases and liquids built on the variable area principle. Designed in close collaboration with users, it combines our long experience and practical shop-floor requirements
- Compact and slim Design
- Millimetric-scales or direct reading scales
- Customer-specific scales
- Spherical float for optimized stability
- Body material: Aluminium or stainless steel
- Seals material: FKM or EPDM
- 15 turns needle-valve
- Valve practically hysteresis-free
- Front panel mounting
- Customized versions available
|
 |

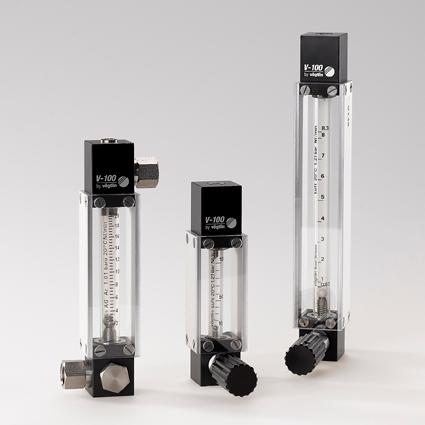

V-flow - Wide-ranging and modular variable area flowmeters and controllers
V-100 is a classical variable area flow meter for gases and liquids with great variability and flexibility of broad range of options.
- Millimetric-scales or direct reading scales
- Customer-specific scales
- Spherical float for optimized stability
- Body material: Aluminium or stainless steel
- Seals material: FKM or EPDM
- 15 turns needle-valve
- Valve practically hysteresis-free
- Min. and max. limit switch option
- Customized versions available
|
 |

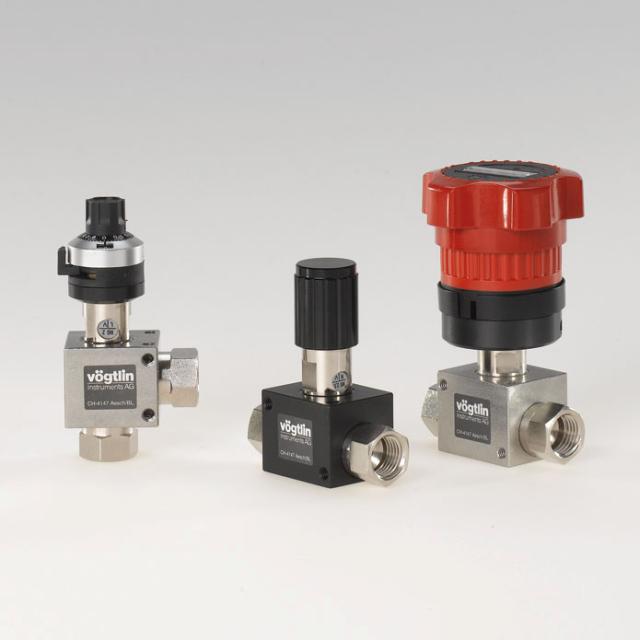

M-flow - High-precision control valves
High-precision control valve for fine dosages. M-flow micro valves were developed for fine dosages of gases and liquids. They are an integrated constituent of the float-rotameters by Vögtlin and are often used as separate valve units for OEM applications.
- Compact, modular construction
- Very smooth and accurate adjustement
- Leak-proof when closed
- Stable and precise regulation
- Customer specific versions
- Aluminium or stainless steel
- Different seal materials
- Straight valve, corner valve or insert
- 15 turn spindle, no hysteresis
|
